Tube Flaring Tools for Bead Spacers

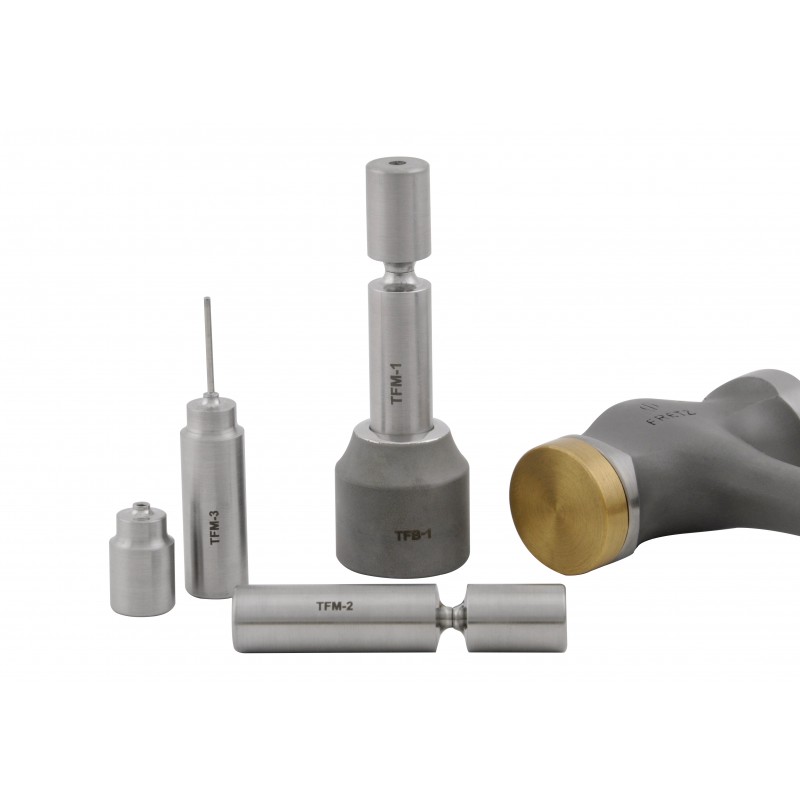

The Tube Flaring Tools are made up of four parts.  There are three split Tube Flaring Mandrels, TFM-1, TFM-2 and TFM-3 for holding cut pieces of tubing of various sizes.

The mandrels are held upright in the Tube Flaring Base, TFB-1 to make the flaring process accurate and easy.

An annealed cut piece of seamless tubing is placed between the two parts of a split mandrel and flared by striking with a stamping hammer.  Many variations are possible by changing the length, width and gauge of the tubing, and then texturing with hammers if desired.

It is important to use the largest size split mandrel possible with the chosen tubing diameter.

The size range of sterling tubing to be used is 3.5-7mm inside diameter with this set.



The set includes:



 An Wood Holder

TFM-1 for Tubing with an Inside Diameter of 3.5mm 4.4mm

TFM-2 for Tubing with an Inside Diameter of 4.5mm-5.9mm

TFM-3 for Tubing with an Inside Diameter of 6mm-7mm

TFB-1  Tube Flaring Base



For Instruction Please Visit Our Articles
